Setting up SSL with PanatrackerGP

Setting up SSL with PanatrackerGP

Follow these instructions to configure your PanatrackerGP portal to use SSL.

Configuration Steps

  1. Log into the server where PanatrackerGP is hosted/installed.
  2. Open IIS (Internet Information Services).
  3. Under Sites, select your PanatrackerGP portal.
  4. Select Bindings.

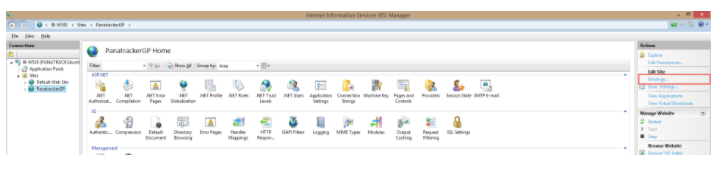

IIS Site Bindings option

  1. Select ADD to add a new binding.

Add Site Binding buttonAdd Site Binding button

  1. In the TYPE dropdown, select https.

Note: This example uses port 443. You will want to choose a different port for your portal such as 444 or 445.

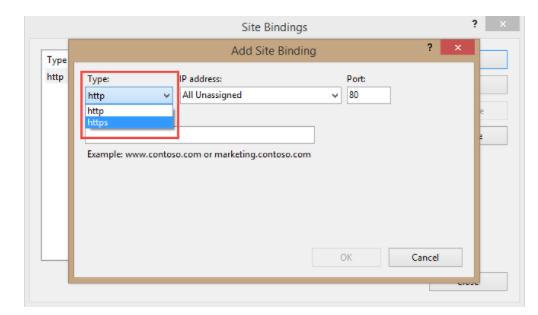

HTTPS binding type selectionHTTPS binding type selection

  1. In the SSL certificate dropdown that appears, select the certificate you will be using.

Note: For this example, we are using the development certificate built into certain installations of IIS. You will likely be choosing a certificate created by your internal certificate authority or a trusted 3rd party source.

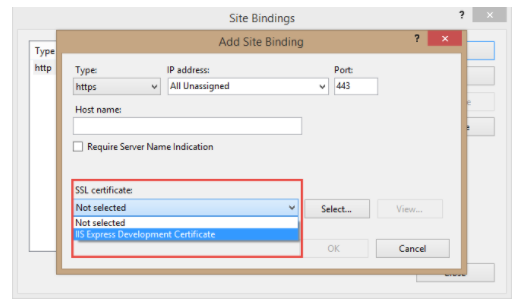

SSL certificate selectionSSL certificate selection

  1. Browse to the portal located on the port you had selected by clicking the Browse link on the right side of the IIS window. Ensure the PanatrackerGP portal loads and behaves as you'd expect it to.

Browse website link in IISBrowse website link in IIS

  1. Next you will need to reconnect the PanatrackerGP handheld application to the portal over the new SSL connection you have made. To do this, follow the instructions found at this link. Please ensure you input the correct port number and you place a check in the SSL box.
