Enable Symbologies on Zebra Android Devices

Enable additional barcode symbologies in DataWedge so your Zebra device can scan the barcode types used in your environment.

Steps

Open the DataWedge app and select the active Profile.

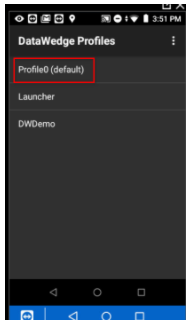

DataWedge Profiles screen showing Profile0 selected

Scroll down to Configure Scanner Settings.

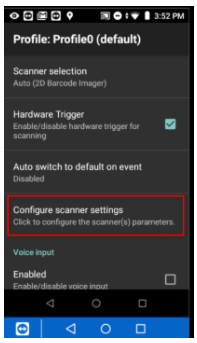

Profile settings with Configure Scanner Settings highlighted

Select Decoders.

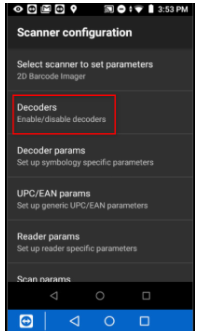

Scanner configuration menu with Decoders option highlighted

Check the box for each symbology you want to enable.

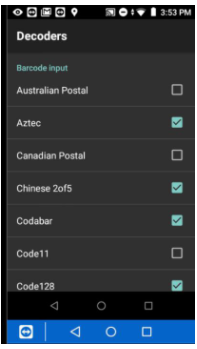

Decoders list showing barcode symbology checkboxes
