Program the Enter key with scan function for Android devices

Program the Enter key with scan function for Android devices

By default, the Enter key is not programmed on Android devices. You need to configure it so that scanning a barcode automatically advances to the next field in PanatrackerGP.

Steps

  1. Open your applications list and launch the DataWedge application.

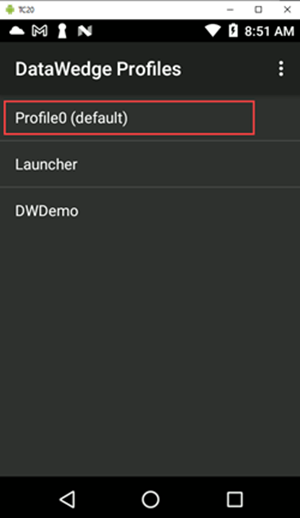

  2. Select the default profile: Profile0(default).

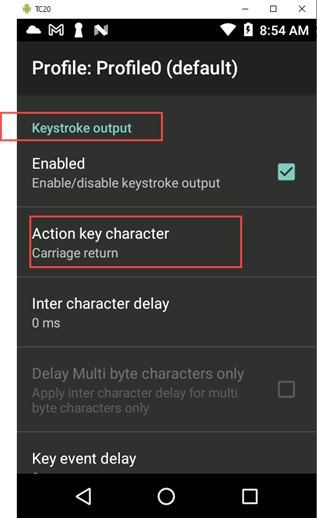

  3. Scroll down to the Keystroke Output section and tap Action Key Character.
  4. Select Carriage Return.

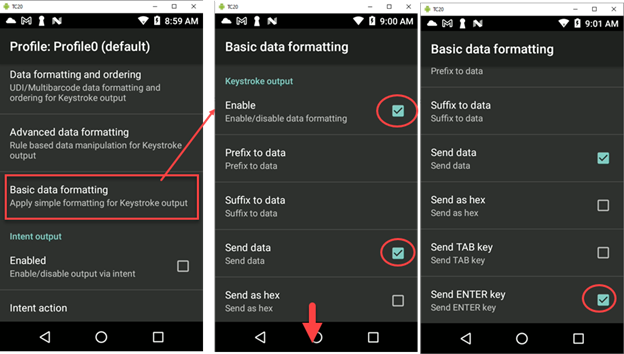

  5. Under Basic Data Formatting, enable these options:
    1. Enable
    2. Send Data
    3. Send ENTER Key
