MC3300X Program Keys for Special Character & Lookup List

MC3300X Program Keys for Special Character & Lookup List

Use Key Programmer on the Zebra MC3300X to assign special characters or lookup list navigation to physical keys.

Program a Special Character Key

Open Android Settings.

Scroll down to Key Programmer.

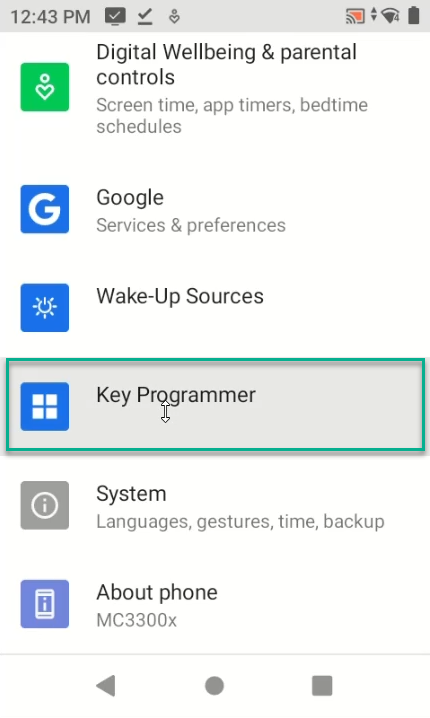

Key Programmer option in Android SettingsKey Programmer option in Android Settings

In the Key Programmer window, scroll down and tap Diamond.

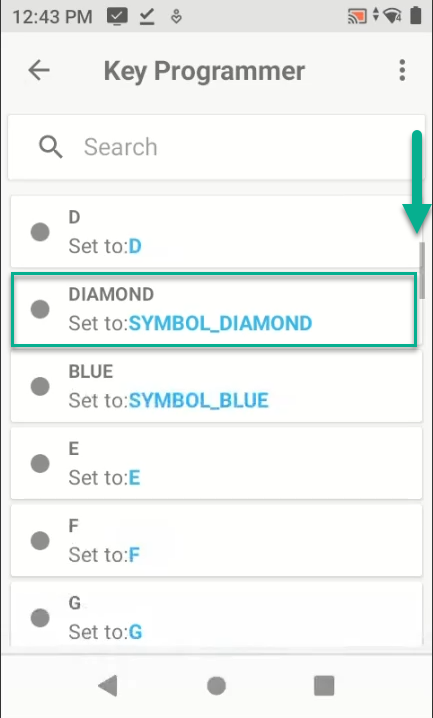

Diamond key option in Key ProgrammerDiamond key option in Key Programmer

Tap Keys and Buttons.

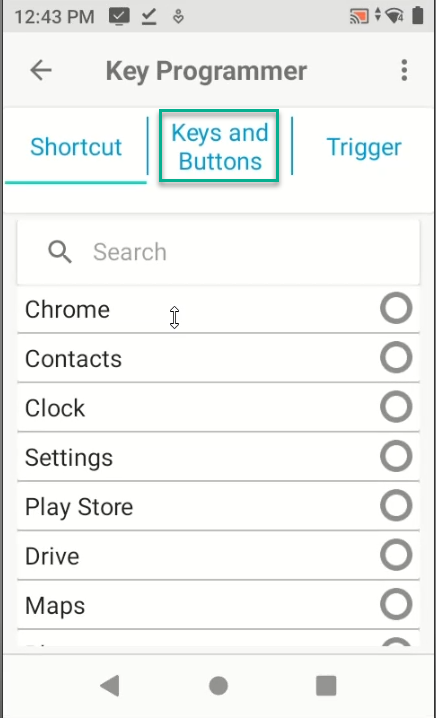

Keys and Buttons optionKeys and Buttons option

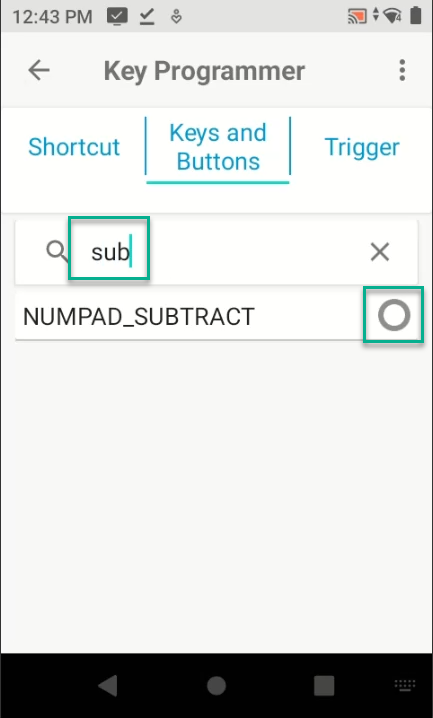

Use the search bar to find the character you want to program. For example, search Subtract for a hyphen or dash.

Tap the radio button to select it.

Character selection with radio buttonCharacter selection with radio button

Program the P1 Key for Lookup Lists

Use the search bar to query p1 and tap it.

P1 key search resultP1 key search result

Select Keys and Buttons.

Use the search bar to enter dpad.

Tap the radio button for DPAD_DOWN.

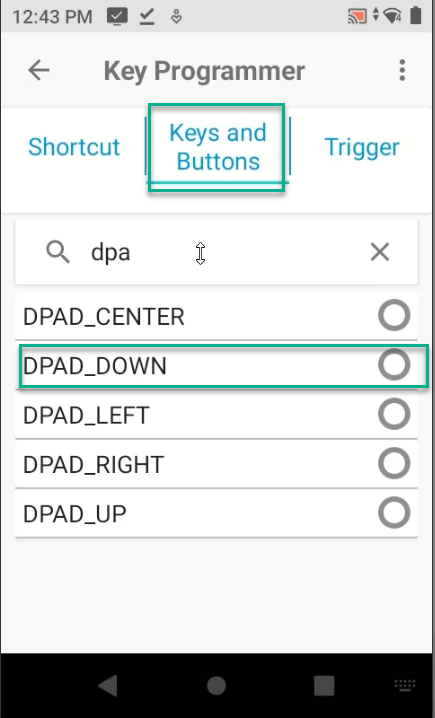

DPAD_DOWN selection for P1 keyDPAD_DOWN selection for P1 key

Press the Back key to complete.
